Product discription
HS series lamination system is composed of many subsystems which are placed freely in space, including oil hydraulic power system, heat medium oil temperature control system, heating, cooling system and electronic control unit. The production line can belaid out freely and reasonably according to the site needs. Optional accessories such as feeding truck, automatic feeding, unloading device and temporary storage system can effectively cooperate with the rack transmission system to achieve automatic operation.


Technical parameters

Type	Total pressure(KN)	Diameter of the main oil cylinder(mm)	Number of open	Hot platen size(mm)	Effective area
HS125-350	35000KN	φ990	6	1068×1650×60（T）	1000×1600

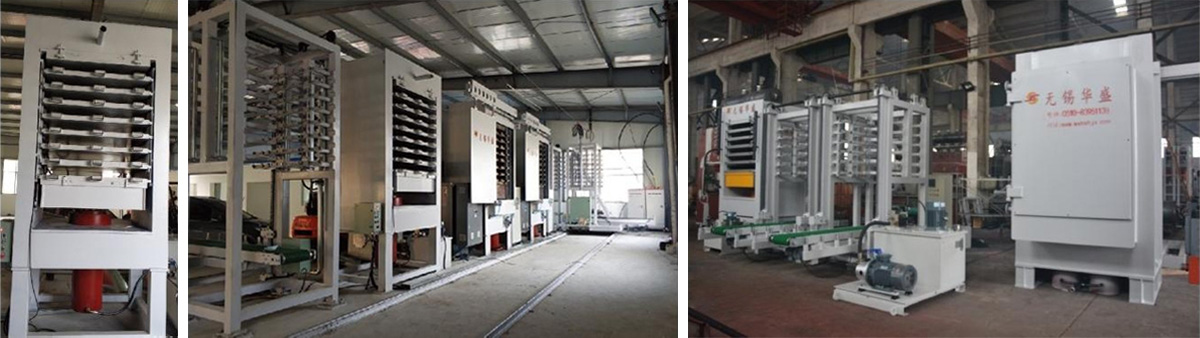

Customer case
