Product discription

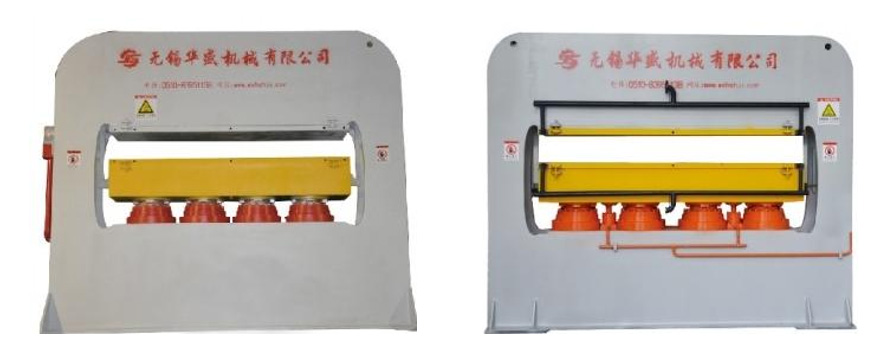

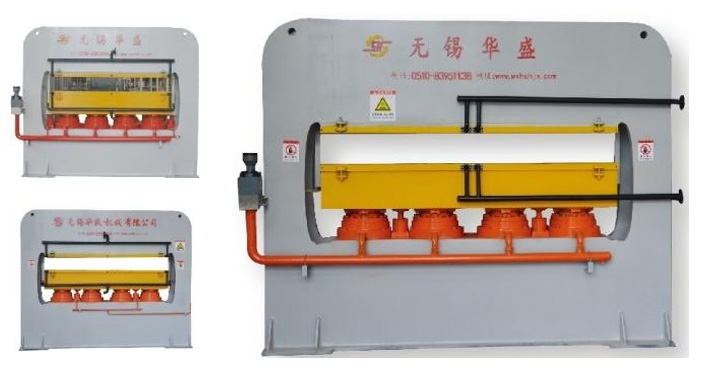

Line molding machine is also called line machine, mainly used for the molded door skin frame and the skirting line, it is belonged to underneath style single veneer hot press.
Technical parameters
|
Type |
Total pressure(KN) |
Diameter of the main oil cylinder(mm) |
Quantity of the main oil cylinder |
Size |
|
HSYJ-T150 |
1500 |
φ280 |
1 |
500x500、600x600 |
|
HSYJ-T200 |
2000 |
φ320 |
1 |
500x500、600x600 |
|
HSYJ-T300 |
3000 |
φ360 |
1 |
500x500、600x600 |
|
HSYJ-T600 |
6000 |
φ400 |
2 |
500x500、600x600 |
|
HSYJ-T700 |
7000 |
φ420 |
4 |
2'×4' |
|
HSYJ-T1400 |
14000 |
φ420 |
4 |
4'×4' |
|

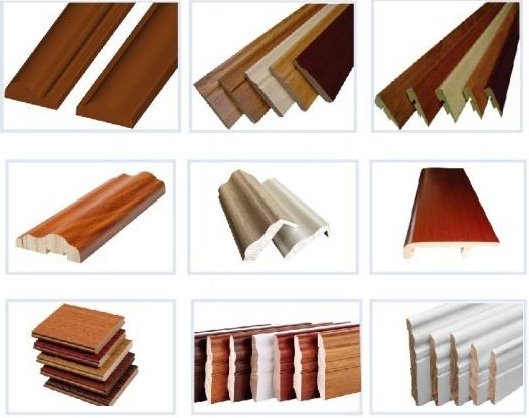

60mm Wallboard (1) |
60mm Wallboard (2) |
80mm Wallhoard (1) |
80mm Wallboard (2) |
90mm Wallbeard |
|
suair woslag |
T malding |
Hua Sheng
machinery |
Reducer |
End cap
(Carpet reducer) |
|
F tpe end cp |
Lope end cap |
Quarter round |
Concave line |
PVC clip |
Customer case
Application

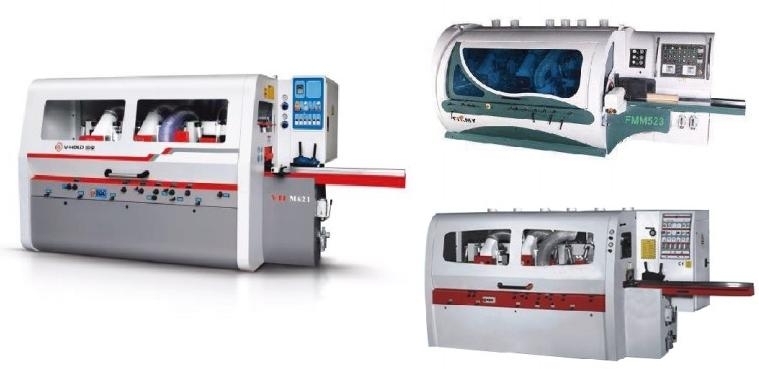

Related machinery
