Product discription

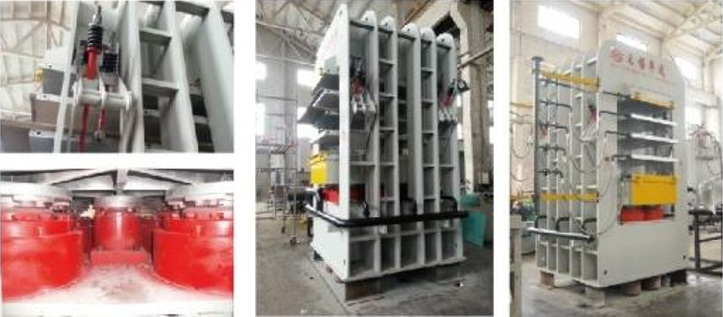

Door skin hot press is suitable for melamine door skin, natural veneer door skin. The synchronizer is human oriented design which let the hot platens can be stopped at any position. (i. e. limit control), and the residence time is adjustable, it can reduce the compression time difference between the lowest layer and top layer, so that, it can better ensure product quality. The time of the pressure and the pressure value can be automatically set & controlled.
Technical parameters
|
Type |
Total pressure(KN) |
Diameter of the main oil cylinder(mm) |
Quantity of the main oil cylinder |
Size |
|
HSYJ-DS700 |
7000 |
φ280 |
6 |
3'×7'、4'×8'or customized |
|
HSYJ-DS900 |
9000 |
φ280 |
6 |
3'×7'、4'×8'or customized |
|
HSYJ-DS1200 |
12000 |
φ320 |
6 |
3'×7'、4'×8'or customized |
|
HSYJ-DS1400 |
14000 |
φ340 |
6 |
3'×7'、4'×8'or customized |

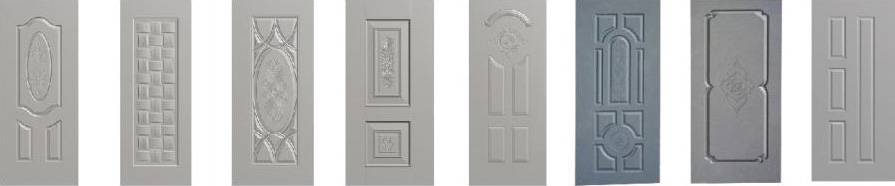

Door skin mould
The door skin moulds are used in the door press for molding melamine door skin. For the detail texture, it can be customized here.

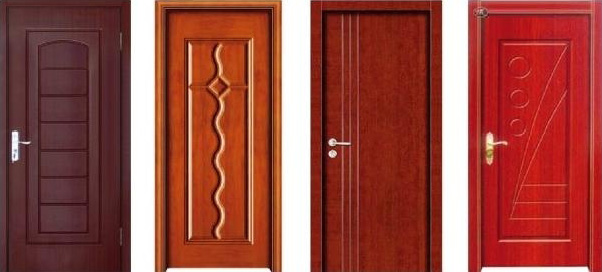

Molded door skin

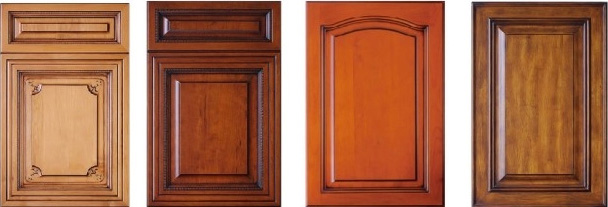

Cabinet door skin

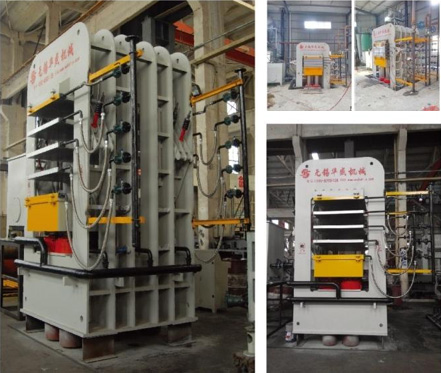

Customer case
